Portable Models

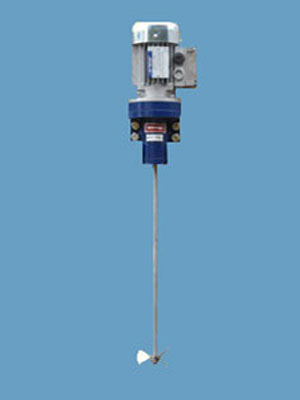

FHD MODEL
FHD agitators are designed for small tanks. The agitator is directly coupled to fractional horse power motor of speed 1440 rpm in the kw Range 0.18kw and 0.37kw. Two additional sealed ball bearings lubricated for life provide sturdy support to the shaft. Flexible coupling isolates the drive shaft from the bending moment of Agitator shaft. All agitator components are housed inside a corrosion proof Cast Iron housing. The agitators can be clamped to tank or mounted on a stand post. A mini work horse with all in built features of a large agitator.

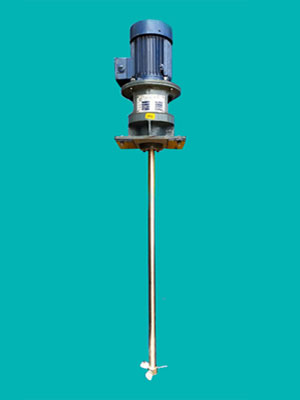

CPD3035 MODEL
CPD3035 portable Agitators are direct driven, coupled to 930 / 1440 rpm motors. Two additional sealed ball bearings lubricated for life provide sturdy support to the shaft. Flexible coupling isolates the drive shaft from the bending moment of Agitator shaft. All agitator components are housed inside a corrosion proof CI lantern. Ideal workhorse for high speed mixing and chemical preparation tanks in water water treatment plants.
