Light Duty Models

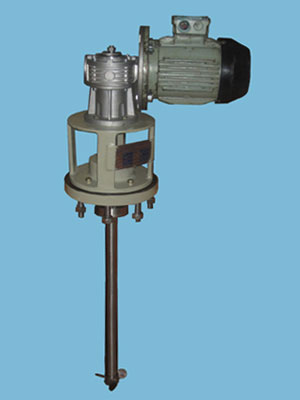

OPTEL MODEL
OPTEL model agitators are available in 50 to 300 rpm range. The speed reduction is achieved by helical gears. Heavy duty sealed ball bearings lubricated for life provides sturdy support to the shaft. High efficiency impeller provided for effective mixing at low power consumption. All agitator components are housed inside a corrosion proof Cast Iron housing. Simple and rugged design for slow speed mixing in preparation tanks in water and waste water treatment plants.

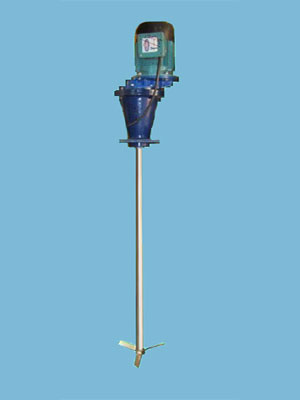

MONO MODEL
Mono model agitators are designed with compact single stage helical gear box to give speed ranges of 200-400 rpm. Heavy duty sealed beareing and additional flexible coupling are provided. All are housed inside CI housing.Simple and efficient model with high speed mixing ability for water.

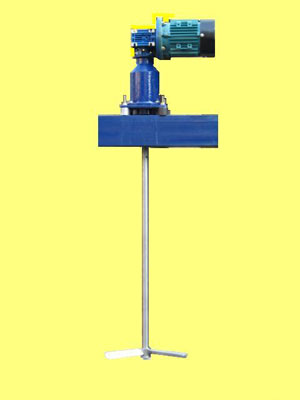

CPW MODEL
CPW portable agitators are available in 100 to 300 rpm range in the kw range 0.18kw and 0.37kw. The speed reduction is achieved by worm gear. Two additional sealed ball bearings lubricated for life provide sturdy support to the shaft. High efficiency impeller provided for effective mixing at low power consumption. All agitator components are housed inside a corrosion proof Cast Iron housing. Ideal work horse for low / medium speed mixing in preparation / dosing tanks in water and waste water treatment plants.

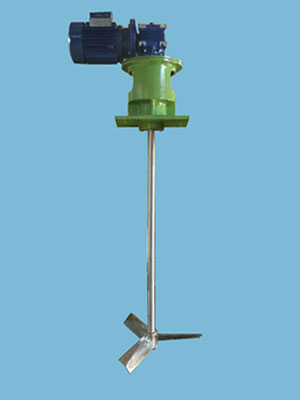

CPW3035R MODEL
CPW3035R portable agitators are available in 100 to 300 rpm range in the kw range 0.37kw and 0.75kw. The speed reduction is achieved by worm gear. Two additional sealed ball bearings lubricated for life provide sturdy support to the shaft. High efficiency impeller provided for effective mixing at low power consumption. All agitator components are housed inside a corrosion proof Cast Iron housing. Ideal work horse for low / medium speed mixing in preparation / dosing tanks in water and waste water treatment plants.

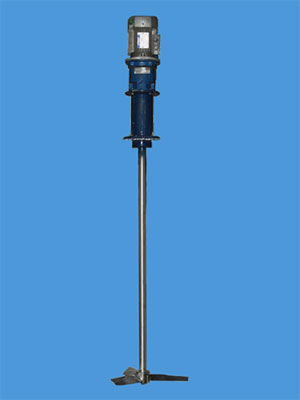

CPH MODEL
CPH portable agitators are available in 500 to 300 rpm range in the kw range 0.37kw and 0.75kw. The speed reduction is achieved by helical gears. Two additional sealed ball bearings lubricated for life provide sturdy support to the shaft. High efficiency impeller provided for effective mixing at low power consumption. All agitator components are housed inside a corrosion proof Cast Iron housing. Compact model for slow speed mixing in preparation tanks in water and waste water treatment plants.

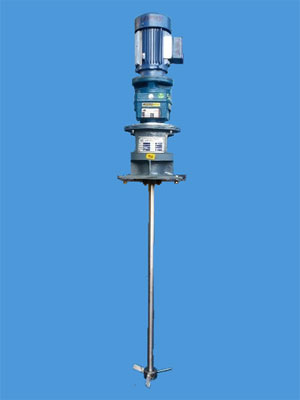

CPH3035R MODEL
CPH3035R portable agitators are available in 500 to 300 rpm range in the kw range 0.37kw to 1.5kw. The speed reduction is achieved by helical gears. Two additional sealed ball bearings lubricated for life provide sturdy support to the shaft. High efficiency impeller provided for effective mixing at low power consumption. All agitator components are housed inside a corrosion proof Cast Iron housing. Compact model for slow speed mixing in preparation tanks in water and waste water treatment plants.
